Hard Candy Depositing Line

Hard Candy Depositing Line main image
Hard Candy Depositing Line-image

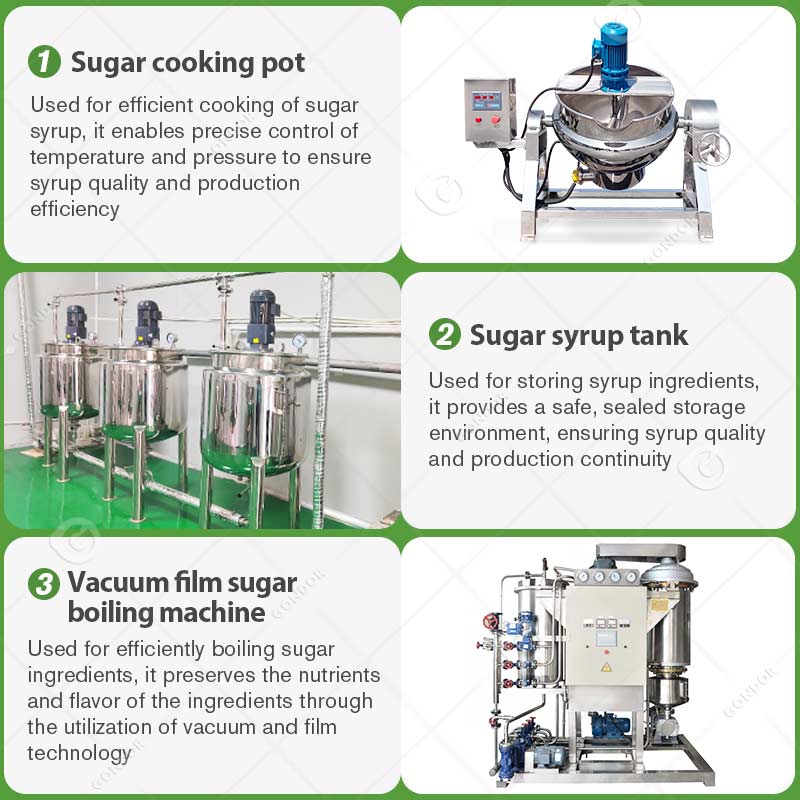

With the increasing demand for product diversification, quality stability and automation efficiency in the global candy market, the hard candy depositing line independently developed by our company came into being. Combined with many years' experience in food machinery manufacturing, the production line adopts international advanced automation technology, which is specially designed for producing high-quality hard candy with multi-color and multi-morphology. Moreover, the whole line is composed of core equipment such as sugar boiling pot, syrup storage tank, vacuum film sugar boiling machine, hard candy pouring machine and air-cooled tunnel. It is compact in structure and easy to operate. It is made of food-grade stainless steel and meets international standards such as GMP/HACCP/QS. In addition, by changing the mold flexibly, single color, two color, three color sugar, crystal sugar, button sugar and spherical lollipop can be produced efficiently, which fully meets the diversified market demand.

Food-grade candy depositing line (FDA-approved) for halal/vegan confectionery production

Model GD150B-S GD300B-S GD450B-S GD600B-S GD1200B-S
Capacity 150kg/h 300kg/h 450kg/h 600kg/h 1200kg/h
Depositing speed 25-35n/min 30-60n/min
Steam requirement 250kg/h,0.5-0.8MPa 300kg/h,
0.5-0.8MPa		 400kg/h,
0.5-0.8MPa		 500kg/h,0.5-0.8MPa 1200kg/h,0.5-0.8MPa
Compressed air requirement 0.2m3/min,

0.4-0.6MPa

 0.2m3/min,

0.4-0.6MPa

 0.2m3/min,

0.4-0.6MPa

 0.3m3/min,

0.4-0.6MPa

 0.6m3/min,

0.4-0.6MPa
Working condition Temperature 20°C-25°C;  Humidity45-55%
Electric power needed 18kW/380V 27kW/380V 34kW/380V 38kW/380V 56kw/380V
Total length 17m 19m 19m 22m 40m
Weight of machine 4000kg 5000kg 6000kg 7000kg 12000kg

The Market Targeted by Hard Candy Depositing Line

  • Candy Manufacturers
  • Food Processing Plants
  • Snack Brand Chains
  • Independent Entrepreneurs
  • OEM
Whether it is a large-scale automatic factory or a small and medium-sized food enterprise, Gondor hard candy making machine can help you stand out in the candy market with flexible configuration and reliable performance.

Quality Advantage of Candy Depositing Line

High Automation Level
The whole line is equipped with intelligent control system, and the key parts are equipped with Schneider electrical components and Emerson frequency converter to realize stable operation and precise control.
Flexible Molding Options
Double-color hopper with Italy/Japan original electromagnetic flavor pump and multiple sets of mixers can easily realize the appearance of striped candy, spray candy, double-color candy and other artistic candy.
Superior Candy Texture
Using vacuum film sugar boiling machine and frequency conversion speed control boiling process, the sugar body structure is more compact, the taste is more crisp and the appearance is more shiny.
Efficient Cooling

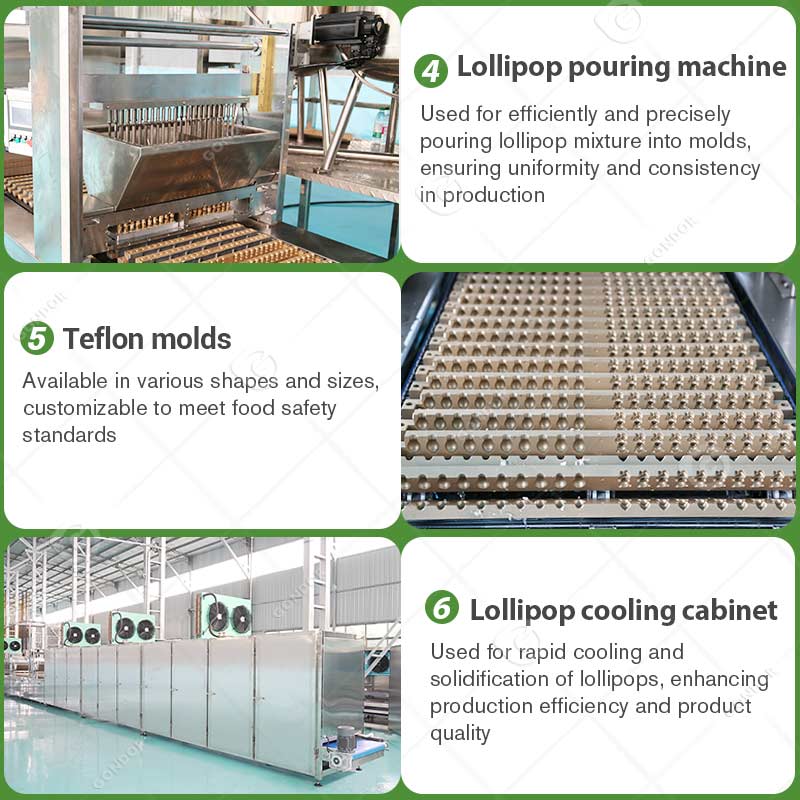

The 11-meter air-cooled tunnel is equipped with a vibrating screen conveying system, which effectively prevents deformation and maintains the perfect shape and accurate stick position of lollipops.
Easy Operation & Maintenance
The structure is straight and concise, and the mold is easy to change. All the equipment supports customized services, which can meet the production needs of different customers.
Global Standard Compliance
The whole line equipment is designed and manufactured according to international food safety standards (GMP/HACCP), which not only meets the global market supervision requirements, but also helps enterprises to successfully pass various certifications and improve brand reputation.
Multifunctional candy depositing line for gummies, caramels, and hard sugar candies
Customizable hard candy making machine for unique shapes (round, square, logo-themed)
Automatic hard candy making machine with PLC control for consistent sugar candy texture

Recommended Supporting Machines

In order to build a complete and efficient candy production line, it is recommended that you pay attention to the following equipment at the same time:

  • Lollipop Forming Machine
  • Jacketed Kettle
  • Premade Pouch Packing Machine

Whether you are expanding your business or seeking more advanced production solutions, hard candy depositing line is your solid backing to win the market. Welcome to contact us for more technical data and quotation information, and we will tailor the best solution for you.
